CP930W BASE

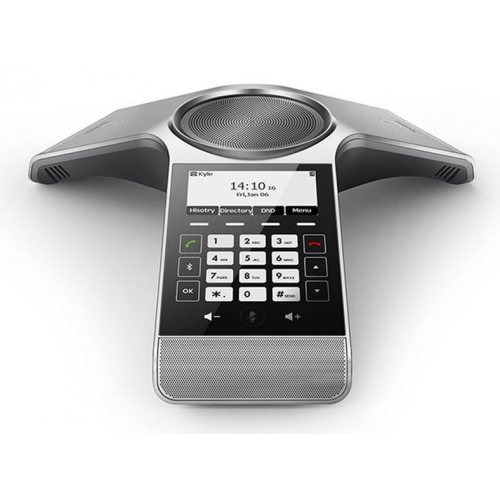

The CP930W is the first Wireless DECT Conference Phone in Yealink’s product portfolio. Based on reliable and secure DECT technology, the CP930W frees users from the limitations of power outlets and Internet ports, and meets the mobility requirement of the organization. By associating with the Yealink DECT base, it is completely wireless for the users to hold the meeting anywhere within the DECT base coverage, which is 50 meters indoor and 300 meters outdoor.
The built-in rechargeable battery supports 24 hours of talk time, and requires less than 4 hours to be fully charged. It ensures a weekday’s frequent usage of the phone without recharging!
Easy Deployment
Enable the CP930W by pairing with the Yealink W60B base station. Yealink W60B DECT base can handle up to 8 Yealink DECT handsets, 8 accounts and 8 simultaneous calls.
First Rate Voice Clarity
• The Yealink CP930W delivers HD Voice with a frequency range of 60Hz-16kHz. Fully enabled to capture the tone and inflection of the speech.
• It is built with Yealink Noise Proof Technology which intelligently eliminates background noises and reduce misunderstandings.
You’re Within the Coverage
• The Yealink CP930W is designed with 3 microphone arrays which supports 20-foot and 360-degree HD voice pickup.
• It provides the mobility for participants to walk around in the meeting room freely, and delivers the flexibility to meet the coverage needs of different meeting sizes.
Incorporated with a 3.1” 248x120-pixel graphical LCD display for easy information browsing
Asensitive touch keypad which puts main conferencing function keys at the user’s fingertips.
Three one-touch mute buttons with LED indicators allow switch between mute and unmute with ease, and reduce accidental operations.
Enterprise-grade device for medium- to large-sized meetings
Advanced Features
• The CP930W is packed with multiple useful features to make conferencing easy. It supports Bluetooth or USB Micro-B port pairing to connect with personal devices. So you are able to route and merge calls on your personal devices into a Yealink Hybrid UC Meeting on the CP930W.
• The CP930W also supports call recording via Micro SD card to make sure no critical conference details are forgotten.
Phone Features • Up to 8 simultaneous calls • Up to 8 handset (CP930W works as a handset) • Up to 8 SIP accounts (only one SIP account on CP930W) • Up to 5 repeaters per base station (RT20/RT20U) • Up to 6 repeaters per base station (RT30) • Paging, intercom, dial plan • Call hold, call transfer, 5-way conference (CP930W only) • Switching between calls • Call waiting, mute, silence, DND • Caller ID with name and number • Anonymous call, Anonymous call rejection • Call forward (always/busy/no answer) • Speed dial, voicemail, redial • Message Waiting Indication (MWI) • Music on hold (server-based) • Local phonebook for up to 800 entries (store in the base, 100 entries in each handset) • Remote phonebook/LDAP • Phonebook search/import/export • Call history (all/missed/placed/received) • Direct IP call without SIP proxy • Reset to factory, reboot • Keypad lock, emergency call • Broadsoft directory, BroadSoft call log • Broadworks feature key synchronization • Shared Call Appearance (SCA) Management • Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS • Auto-provision with PnP • Handset upgrade: OTA (Over-The-Air)/USB port • Configuration: browser/phone/auto-provision • Trace package and system log export Audio Features • Full-duplex speakerphone • Receiver volume control • Ringer volume control • Multiple advisory tones • Acoustic warning for low battery status • DTMF • Wideband codec: Opus, AMR-WB (optional), G.722 • Narrowband codec: PCMU, PCMA, G.726, G.729, iLBC • VAD, CNG, AGC, PLC, AJB • Support VQ-RTCPXR (RFC6035), RTCP-XR Network Features • SIP v1 (RFC2543), v2 (RFC3261) • SNTP/NTP • VLAN (802.1Q and 802.1P) • 802.1x, LLDP, PPPoE • STUN Client (NAT Traversal) • UDP/TCP/TLS • IP assignment: static/DHCP • Support outbound proxy server backup Security • Open VPN • Transport Layer Security (TLS) • HTTPS (server/client), SRTP (RFC3711) • Digest authentication • Secure configuration file via AES encryption • Support SHA256/SHA512/SHA384 • Three-level configuration mode: Admin/Var/User DECT • Frequency bands: 1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US) • DECT Standards: CAT-iq2.0 Interface • 1 x RJ45 10/100M Ethernet port（W60B） • Power over Ethernet (IEEE 802.3af), Class 1 (W60B) Physical Features • Indoor Range: 50m (in ideal conditions) • Outdoor Range: 300m (in ideal conditions) • Standby Time: 360 hours (in ideal conditions) • Talk Time: 24 hours (in ideal conditions) • 3.1" 248x120-pixel graphical LCD with backlight • Sensitive touch keypad • 25 total keys: 4 soft keys, off-hook key, on-hook key, 12-key numerical keypad, Bluetooth, mute, volume keys, 2 navigation keys, OK key • Multilingual user interface • Three LED indicators on W60B: - 1 x Registration LED - 1 x Network Status LED - 1 x Power Indicator LED • External Yealink AC adapter： AC 100-240V Input and DC 5V/600mA Output (W60B) AC 100~240V input and DC 12V/1A output (CP930W) • Color: CP930W:Space Silver; Base: Classic Grey • Phone size: 307.8mm*298.5mm*66.9mm • Base station size: 130mm x 100mm x 25.1mm • Charging cradle size: 110mm*127mm*21.5mm • Operating humidity: 10~90% • Operating temperature: -0~+40°C (+32~104°F) Package features • Package content: - Yealink CP930W DECT conference phone (built-in battery) - Charger cradle - W60B Base Station - Base Stand - Two Yealink Power Adapters - Ethernet Cable - Quick Start Guide • Qty/CTN: 5 PCS • N.W/CTN: 9.48 kg • G.W/CTN: 10.51 kg • Giftbox size: 336mm*364mm*112mm • Carton Meas: 587mm*376mm*350mm
