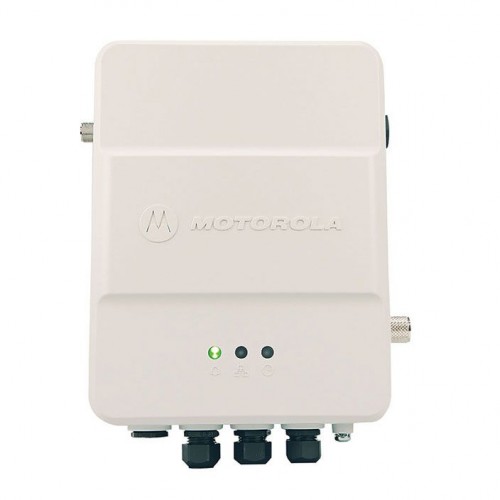

SLR1000

Product Code: SLR1000
Call for Price: 417-887-4663

Keeping your team connected requires uninterrupted radio coverage. Using the SLR 1000 repeater, you can easily extend the range of your network through dead zones and across remote locations, so everyone’s within reach. Deploy the SLR 1000 indoors or out—it’s IP65-rated for dust and water protection. The compact size gives you more installation options. And a low power, fanless design uses less space and energy.

Features



Protected For Your Environment
Improve your coverage in the way that works best for you. With an IP65 rating for water and dust protection along with a fanless design, you can deploy indoors or out without worry.





Cost-effective Coverage
Increasing your coverage doesn’t have to mean increasing your cost of ownership. The SLR 1000 features a low power, fanless, space-saving design that reduces energy and potential installation costs.





Deploy In More Places
Easily mount the SLR 1000 on walls or poles, and take advantage of additional locations to improve coverage. And its compact, fanless design means fewer HVAC planning headaches—with more deployment options.





Grows With You
The SLR 1000 works with both conventional and trunking systems that support voice and data, so you can continue to use it as you expand your network. For conventional systems, deploy the SLR 1000 with Extended Range Direct Mode, and expand your range without having to purchase additional frequencies.



GENERAL SPECIFICATIONS VHF UHF Frequency Range 136-174 MHz 400-527 MHz Channel Spacing 25 / 12.5 kHz Frequency Stability 0.5 ppm Frequency Generation Synthesized Channel Capacity 64 RF Output Power 1-10 W Dimensions (H x W x D) 11 x 9 x 4 in (279.4 x 228.6 x 101.6 mm)* Weight 10 lbs (4.54 kg) Input Voltage (DC) 12 V (11.0-15.5 V) Current (standby) 0.7 A (0.63 A typical) Current (transmitting at 10 W) 3A (typical) Input Power Modes DC only, Optional AC/DC Power Supply Available Operating Temperature Range -22 to +140 °F (-30 to +60 °C) Ingress Rating IP65 Max Duty Cycle 100% Digital Vocoder Type AMBE+2™ Connectivity, right side Rx (N female) Connectivity, left side Tx (N female) Connectivity, bottom USB B Receptacle, 1x Ethernet, RJ45 Accessory Connector, DC Input Modes of Operation Half Duplex / Duplex
