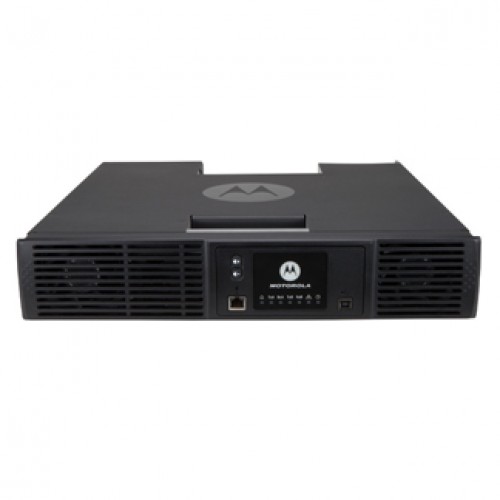

SLR8000

Product Code: SLR8000
Call for Price: 417-887-4663

For better safety and efficiency throughout your organization, you need reliable voice and data communications that connect everyone and everything. The MOTOTRBO SLR 8000 Repeater delivers high performance, high reliability two-way radio service, optimized for your workplace. With its small outline and high reliability, it’s engineered for low cost of ownership. And with a huge leap forward in technology, it represents the next generation in repeaters.

Versatile and powerful, MOTOTRBO combines the best of two-way radio functionality with the latest digital technology. It integrates voice and data seamlessly, offers advanced features that are easy to use and delivers increased capacity to meet your communication needs from the field to the factory floor.

Whether you need the simplicity of a single site conventional system or the powerful trunking capabilities of Capacity Plus, Capacity Max or Connect Plus, the SLR 8000 delivers the power of digital two-way radio to your workforce.

Features

Next-generation MOTOTRBO Repeater

The SLR 8000 represents a huge leap forward in design and technology. Based on a wealth of field experience, customer feedback and technological innovation, the product delivers outstanding performance and reliability for your business two-way radio system. From an efficient modular design to flexible installation options, the SLR 8000 is truly the next generation in repeaters.

High Reliability

The SLR 8000 offers round-the-clock reliable operation, even at its continuous full transmit power of 100W. The high-quality design has been validated through Motorola’s Accelerated Life Testing (ALT) program, and meets stringent quality criteria. The product has a next-generation receiver design, with high sensitivity and improved noise blocking, so you can be confident of clear voice quality, even in the worst conditions.

High Performance

With its 100W transmitter output and high sensitivity receiver input, the SLR 8000 delivers radio coverage to an enormous area. The efficient modular design only requires 2U of rack space, and has very low power consumption, yielding very low cost of ownership. The SLR 8000 supports the full MOTOTRBO feature set and is compatible with all the MOTOTRBO system architectures. The IP interface allows you to build applications and consoles directly on your system.

Total Flexibility

The SLR 8000 can be customized to suit your operation. There are options for an internal preselector amplifier and antenna relay module, offering you a true one-box installation. You can also opt for an internal wireline card if you need tone control capabilities, four-wire audio and additional external inputs

GENERAL SPECIFICATIONS VHF UHF 800/900 Frequency Range 136 - 174 MHz 400 - 470 MHz 800 RX: 806 - 825 MHz TX: 851 - 870 MHz 900 RX: 896 - 902 MHz TX: 935 - 941 MHz Channel Spacing 25*/ 12.5 kHz 12.5 / 20 kHz / 30 kHz Channel Step Size 5 Hz Frequency Stability + / - 0.5 PPM + / - 0.1 PPM Channel Capacity 64 RF Output Power 1 - 100 W Dimensions (H x W x D) 3.5 x 19 x 17.25 in (89 x 483 x 438 mm) Weight 31 lbs (14.1 kg) Input Voltage (AC) 100 - 240 Vac, 47 - 63 Hz Current (standby), 110 / 240 V 0.25 / 0.3 A 0.27 / 0.31 A Current (transmitting at 100 W), 110 / 240 V 2.1 / 1.1 A (typical) 2.0 / 1.1 A (typical) 2.8 / 1.3 A (typical) Input Voltage (DC) 12 V (11.0 - 15.5 V) / 24 V (21.6 - 32.0 V) Current (standby), 24 V 0.5 A 0.6 A Current (transmitting at 100 W), 24 V 8.6 A (typical) 8.2 A (typical) 12 A Input Power Modes AC only, DC only, AC with Battery Revert Operating Temperature Range -22 to +140 °F (-30 to +60 °C) Humidity RH of 95%, Non-condensing at 50 °C (122 °F) Max Duty Cycle 100% Digital Vocoder Type AMBE+2™ Battery Charger Capacity (12 / 24 V) 5 A Connectivity, front panel USB B Receptacle, Microphone (RJ45), Speaker (integrated) Connectivity, rear panel Tx (N female), Rx (BNC female), USB A Receptacle, 2x Ethernet, DB25 Accessory Connector, External Reference (BNC Female) External Reference 5 / 10 MHz (Auto-detect) Supported System Types Digital Conventional, IP Site Connect, Capacity Plus, Capacity Max, Connect Plus Analog Conventional, Analog Conventional Voting, MPT 1327 Audio Types Input: Balanced (600 ohms and Country-specific Impedances), Unbalanced (1000 ohms), Microphone Accessory Port. Output: Balanced (600 ohms and Country-specific Impedances), Unbalanced (600 ohms), Integrated Speaker. Audio Levels Input: Balanced: +10 to -30 dBm, Unbalanced: Adjustable, 80 mV rms nominal for 60% RSD. Output: Balanced: +7 to -30 dBm, Unbalanced: Adjustable, 330 mV rms nominal @ 60% RSD. FCC Emission Designators 11K0F3E, 16K0F3E, 7K60FXD, 7K60F7D, 7K60FXE, 7K60F7E, 7K60F7W 11K0F3E, 16K0F3E, 7K60FXD, 7K60F7D, 7K60FXE, 7K60F7E, 7K60F7W, 21K7D7E, 21K7D7D, 21K7D7W FCC Type Acceptance ABZ99FT3095 ABZ99FT4098 ABZ99FT5101 IC Description 109AB-99FT3095 109AB-99FT4098 109AB-99FT5101
