Product Code: XPR2500
Call for Price: 417-887-4663

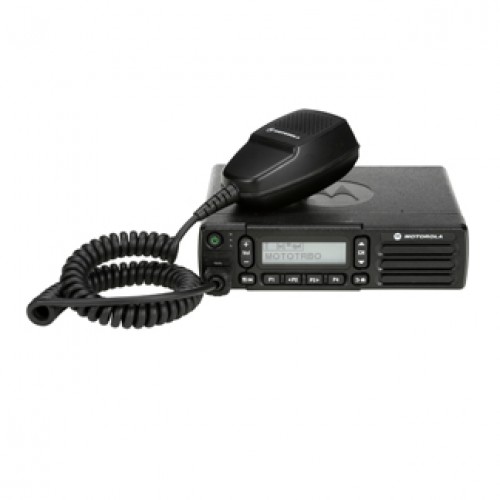

The power of digital communications is now within reach with the MOTOTRBO XPR 2500 mobile two-way radio. Compact and capable, the XPR 2500 keeps workers connected whether they are picking up cargo or transporting passengers. Delivering the best in digital radio technology, with features like integrated voice systems capability, twice the calling capacity, and clearer voice communications, the XPR 2500 is versatile and powerful. For those operating on analog, the XPR 2500 lets you upgrade to digital at your own pace and budget, with simple scalability to add functions and features.  For affordable digital voice systems capability, the MOTOTRBO XPR 2500 gets the job done with clarity and ease.


Transmit Interrupt Capability

Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where it’s needed.

Over the Air Programming (OTAP)

Manages, writes and reads up to 5,000 radio configurations over the air.

Enhanced Privacy

Built-in scrambling for increased security.

Systems Capability

Experience the far-reaching coverage of MOTOTRBO. IP Site Connect uses the Internet to extend coverage to create a wide-area network, while Capacity Plus single-site trunking expands capacity to over 1000 users without adding new frequencies.

Compatible with Radio Management Suite

Program your radios quickly and efficiently, with the Radio Management tool. Radios can be programmed in batches to a standardized template, giving error-free results and optimized performance.

Intelligent Audio

Radio volume automatically adjusts to compensate for background noise so workers don’t have to adjust their radio volume to avoid missing a call in loud situations or disturbing others when they move into quiet places.


Whether it’s a whisper during a covert operation in a dark alley or commanding a noisy fire scene, IMPRES audio accessories are loud, clear and intelligible in both analog and digital modes.

IP54 Rated

Protects your radio from dust and spills.



Performance Characteristics

Power output

1-25W, 25-45W - VHF, 1-25W, 25-40W - VHF

Frequency band


User Environment


Radio Features

Physical Characteristics


  • IP Standards


  • Mil spec

    810 C, 810 D, 810 E, 810 F, 810 G

  • System type

    Conventional, Capacity Plus, IP Site Connect

  • Digital technology


  • Enhanced privacy


  • Transmit interrupt


  • Channels


  • Busy channel lockout


  • Call tones


  • Caller ID


  • Channel spacing


  • One-to-one calling


  • Talkaround


  • Time out timer


  • Programmable buttons


  • Intelligent audio


  • Signaling

    MDC (Encode/Decode), Quik-Call II (Encode/Decode), DTMF Encode

  • Voice announcement


  • Lone worker


  • Call forward


  • Display


  • Weight

    2.9 lbs (1.3kg)

  • Dimensions H x W x D

    1.7 x 6.7 x 5.3 in (44 x 169 x 134 mm)

Channel Capacity 128 Typical RF Output Low Power High Power 1-25 W 25-45 W 1-25 W 25-40 W Frequency 136-174 MHz 403-470 MHz Dimensions (H x W x L) 1.7 x 6.7 x 5.3 in (44 x 169 x 134 mm) Weight 2.9 lbs (1.3 kg) Current Drain Standby Rx @ Rated Audio Transmit 0.81 A max 2 A max 1-25 W: 11.0 A max / 25-45 W: 14.5 A max 0.81 A max 2 A max 1-25 W: 11.0 A max / 25-40 W: 14.5 A max FCC Description 1-25 W: ABZ99FT3090 25-45 W: ABZ99FT3091 1-25 W: ABZ99FT4092 25-40 W: ABZ99FT4093 IC Description 1-25 W: 109AB-99FT3090 25-45 W: 109AB-99FT3091 1-25 W: 109AB-99FT4092 25-40 W: 109AB-99FT4093
